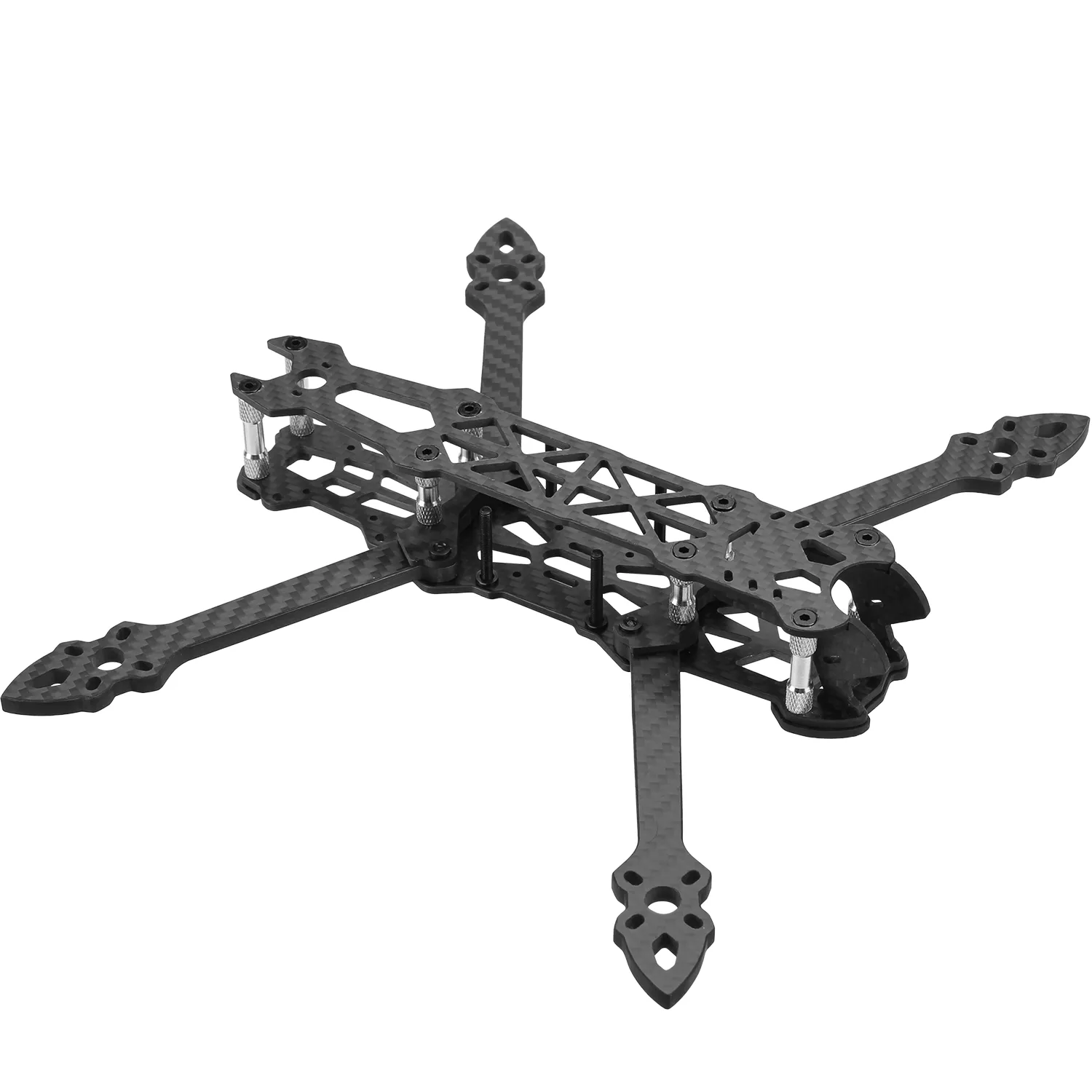

FPV Mark4 V2 5inch Frame/FPV Frame

Model：MAK4 V2 5inch | MAK4 V2 6inch | MAK4 V2 7inch

Material quality：3K carbon fiber | 3K carbon fiber | 3K carbon fiber

Maximum support blade：5inch | 6inch | 7inch

Wheelbase：225mm | 260mm | 295mm

Size：145*172mm | 162*203mm | 193”223mm

Weight：111g | 120g | 130g

Bottom plate thickness：3mm | 3mm | 3mm

Top plate thickness：2mm | 2mm |2mm

Arm thickness：5mm | 5mm | 5mm

Flight control installationhole spacing：Suggest using RF/KisS/F3/F4/F7

Distance between motormounting holes：Suggest using 2205/2206/2207/2207.5/2305/2306 | Suggest using 2207/2207.5/2305/2306/2407 | Suggest using 2207.5/2305/2306/240712408/2507

ESC:Suggest using 30A-50A | Suggest using 35A-60A | Suggest using 40A-60A

Battery:Suggest using 4s 1500mAh-6S 1150mAH | Suggest using 4s 1500mAh-6S 1300mAH | Suggest using 4s 1800mAh-6S 2200mAH

Model:MAK4 V2 8inch | MAK4 V2 9inch | MAK4 V2 10inch

Material quality:3K carbon fiber | 3K carbon fiber | 3K carbon fiber

Maximum support blade:8inch | 9inch | 10inch

Whcelbase:367mm | 387mm | 427mm

Size:237*280mm | 249*296mm | 272*329mm

Weight:212g | 217g | 227g

Bottom plate thickness:3mm | 3mm | 3mm

Top plate thickness:2mm | 2mm | 2mm

Arm thickness:6mm | 6mm | 7mm

Camera installation spacing:19mm | 19mm | 19mm

Distance between installationholes for image transmission:30.5mm/20mm | 30.5mm/20mm | 30.5mm/20mm

Flight control installationhole spacing:30.5mm/20mm | 30.5mm/20mm | 30.5mm/20mm

Distance between motormounting holes:16mm/19mm | 16mm/19mm | 16mm/19mm
