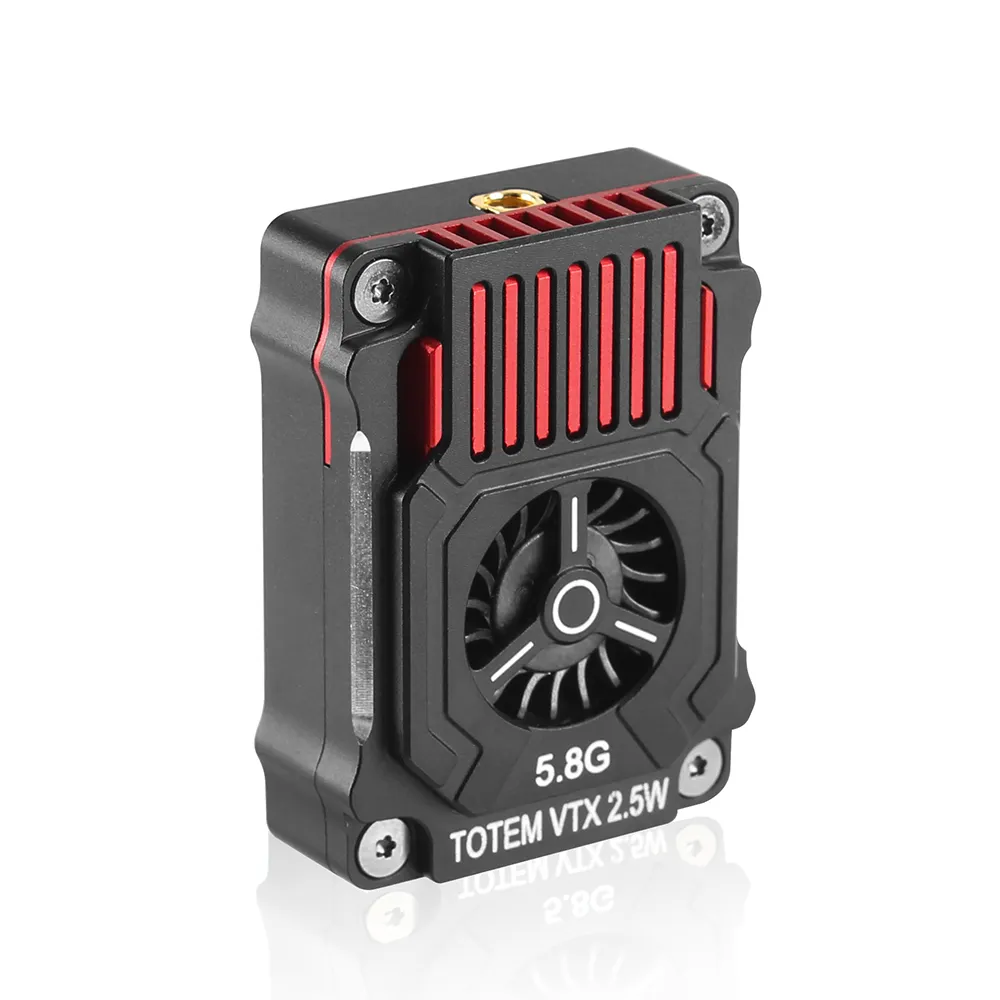

totem 5.8G 2.5W VTX FPV Transmitter

Specifications

Hign-concerned Chemical：None

Is Electric：No battery

Quantity：1 pcs

Wheelbase:Screws

Size：39.2x29x12mm

Technical parameters：Value 2

Model Number:totem 5.8G 2.5W VTX

For Vehicle Type:Airplanes

Tool Supplies:Assembly Category

Four-wheel Drive Attributes:Assemblage

Remote Control Peripherals/Devices:RECEIVERS

Upgrade Parts/Accessories:VTX

RC Parts & Accs:Transmitters

Material:Composite Material

Brand Name:GSF

Origin:Mainland China

Recommend Age:14+y

Use:Vehicles & Remote Control Toys

Certification:none

Power Output:25mw, 400mw, 800mw, 1600mw, 2500mw, Pit

Impedance:750

Connector:MMCX

Format:NTSC or PAL

Protocol:iRc Tramp

Weight:16.5g

Description

Specifications

1. InputVoltage: Dc 7-36V(2-85)

2. Power consumption: 120-860mA(12V/25mw-2500mw)

3. Operating temperature: -10~60℃

4. Impedance: 750

5. Dimensions: 39.2x29x12mm

6. Connector: MMCX

7. Format: NTSC/PAL

8. Protocol: iRc Tramp

9. Weight: 16.5g

10. Mounting: 25.5x25.5mm/@M2

11. Power Output: 25mw/400mw/800mw/1600mw/2500mw/Pit

12. Built-in microphone
